Case

First Supa Maxi™ DN600 in Belgium

When a fracture occurred at the wastewater station in Gentbrugge, Aquafin contacted AVK Belgium for immediate delivery of an AVK Supa Maxi™ flange adaptor. It quickly solved the problem and thus avoided an environmental incident.

Quick solution

During the winter, a fracture occurred at a wastewater station in Gentbrugge close to where the discharge pipes leave the pumping station. Thomas Eeman, expert structural repairs at Aquafin, was able to temporarily solve the problem so that it caused as little discomfort as possible for everyone in the area. Eeman then contacted AVK Belgium for a permanent solution.

Environmental incident avoided

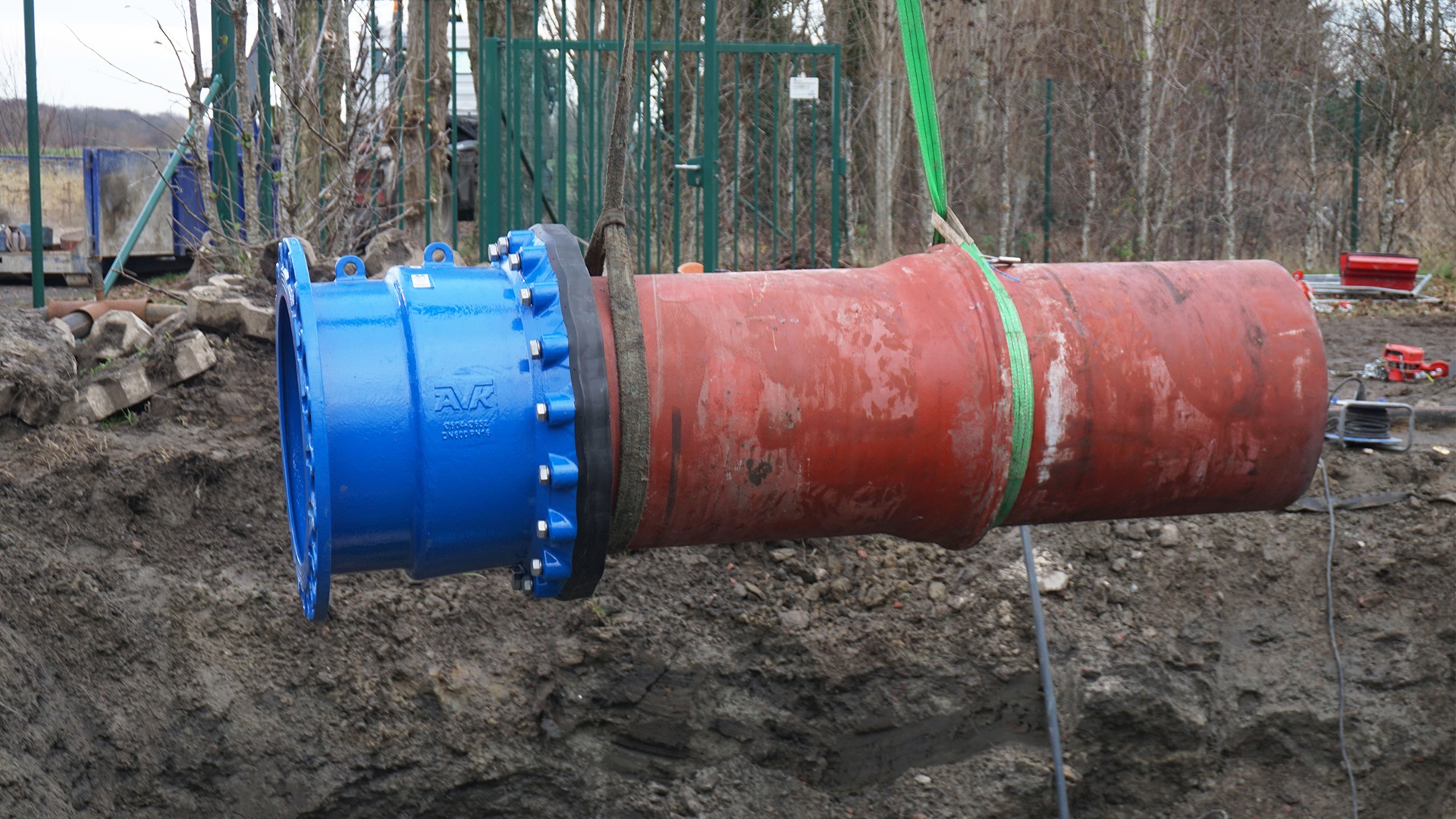

AVK Belgium offered a Supa Maxi™ flange adaptor as a unique solution for the leak. A DN600 Supa Maxi™ adaptor was delivered from AVK International headquarters in Denmark within only one day.

"We have been able to solve the problem within a short period of time and thus avoided an environmental incident" - Thomas Eeman

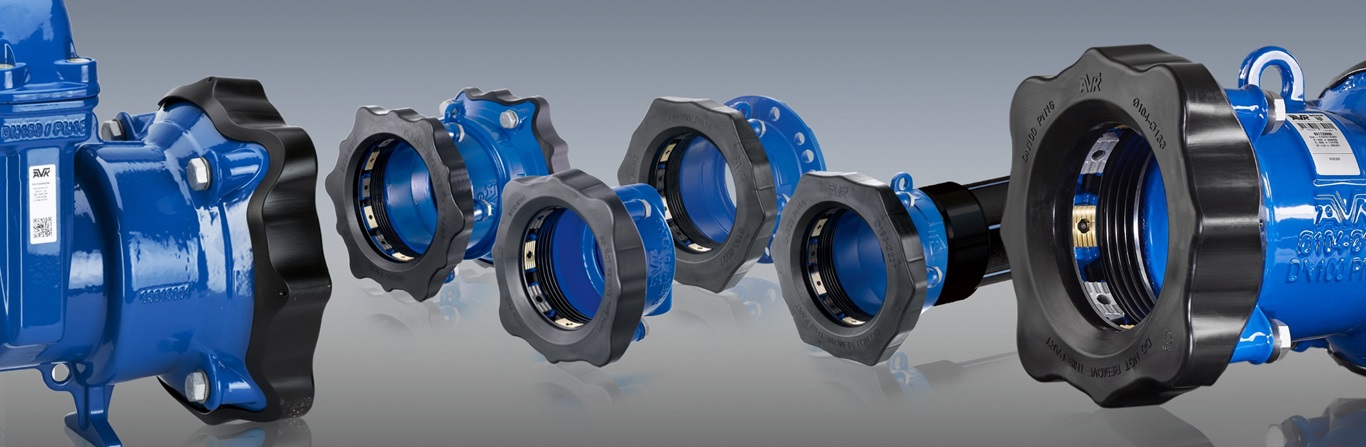

AVK Supa Maxi™ universal tensile couplings

Supa Maxi™ comprises a complete range of large tolerance universal and tensile couplings according to EN 14525 for water, gas and wastewater applications. Straight couplings and flange adaptors are available in DN50-600, end caps in DN50-400, and step couplings and transition couplings are available in DN50-300. Furthermore, gate valves in DN80-300 for water and wastewater applications are part of the range. The patented SupaGrip™ sealing support system features a flexible bracket, and combined with the unique grip design, it provides superior tightness and tensile resistance on all pipe dimensions and materials.

About the project

Company: Aquafin
Location: Gentbruggekouter
Capacity - station: 2268 m³/h
Building year - station: 2004
Main line diameter: DN600



AVK Supa Maxi™ flange adaptor

  • Pressure class PN16
  • Two different grip segments offer tensile resistance on all pipe materials
  • Drinking water approved rubber and coating
  • Enable +/- 4° angular deflection
  • No re-tightening of bolts needed due to the all-metal design
  • Permanent protection caps protect during handling and installation

AVK Supa Maxi™

Go to insights

Supa Maxi™

Video

Supa Maxi™

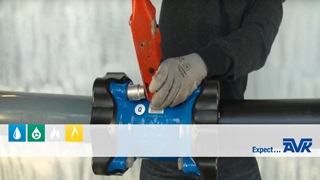

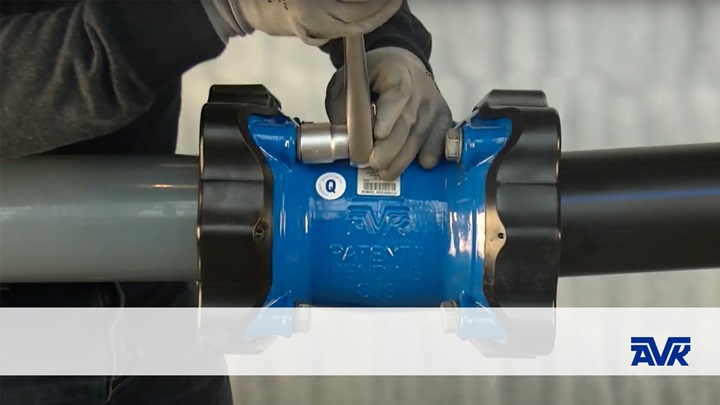

How to install our universal tensile Supa Maxi™ couplings series 63X
