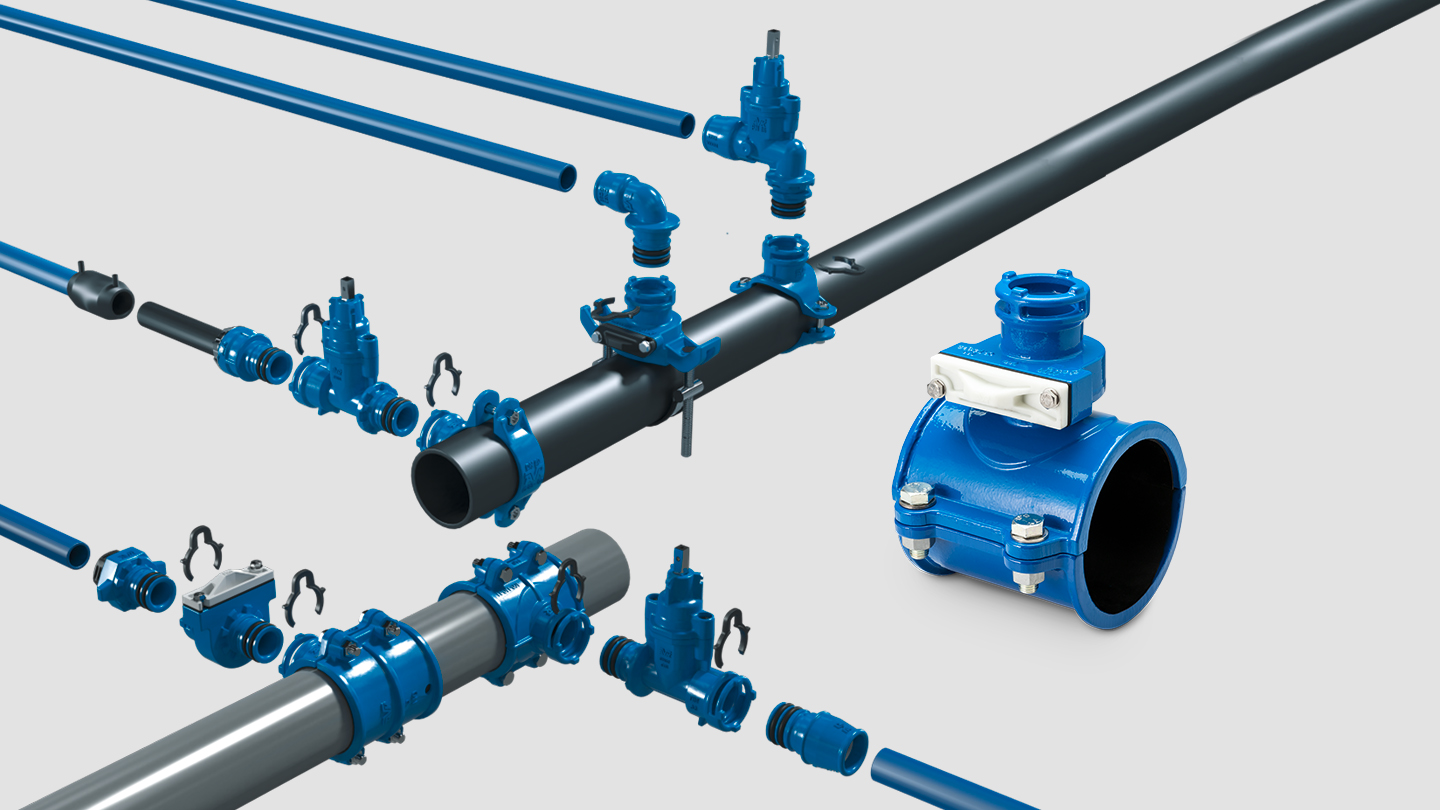

The new tapping saddles are available in DN80-200 for outside pipe diameter 90-225 mm. The saddle is in ductile iron with main gasket of EPDM and with Supa Lock™ socket outlet designed with rotation stop to prevent rotation during the tapping/drilling process. The cassette of POM is sealed with two EPDM O-rings and the cover of POM has an NBR gasket for permanent seal once tapping is complete. The bolts are in stainless steel A2 with antifriction coating, supported by large ears.
Please see datasheet for more product details: Supa Lock™ tapping saddle with blade shut-off

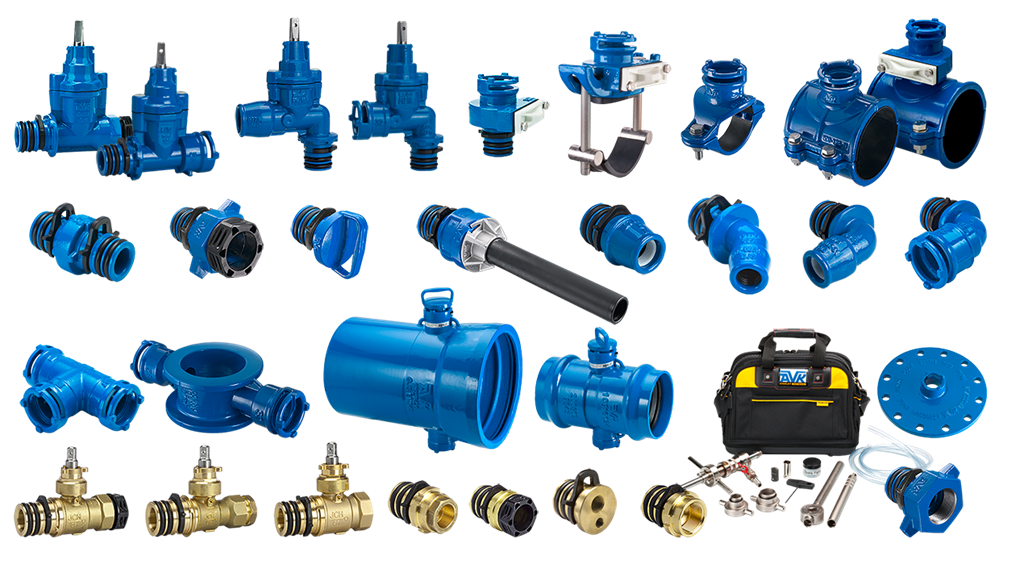

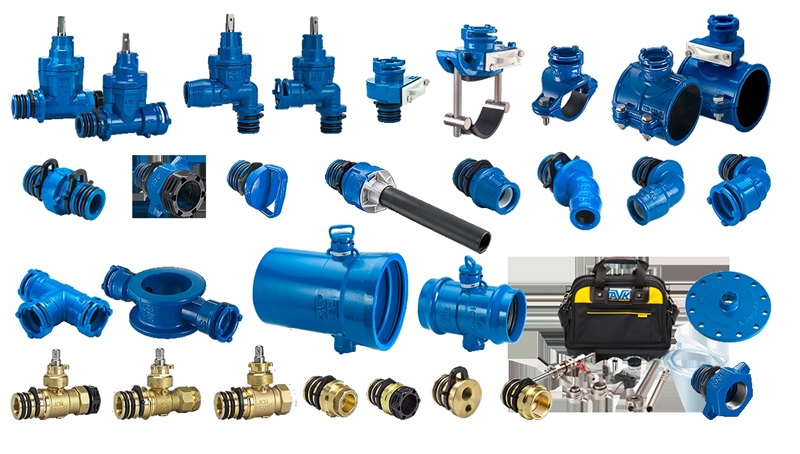

Feature summary of the Supa Lock™ system:
- Corrosion-free joint
- Easy two-step assembly
- Self-locking safety retainer
- Joints with heavy duty O-rings provide extra safety
- No rotation of valves, tapping saddles and connectors
- 360° rotation of the fittings gives maximum flexibility
For more information, please refer to our Supa Lock™ insights web page, where you will find all relevant information about the threadless connection system.
