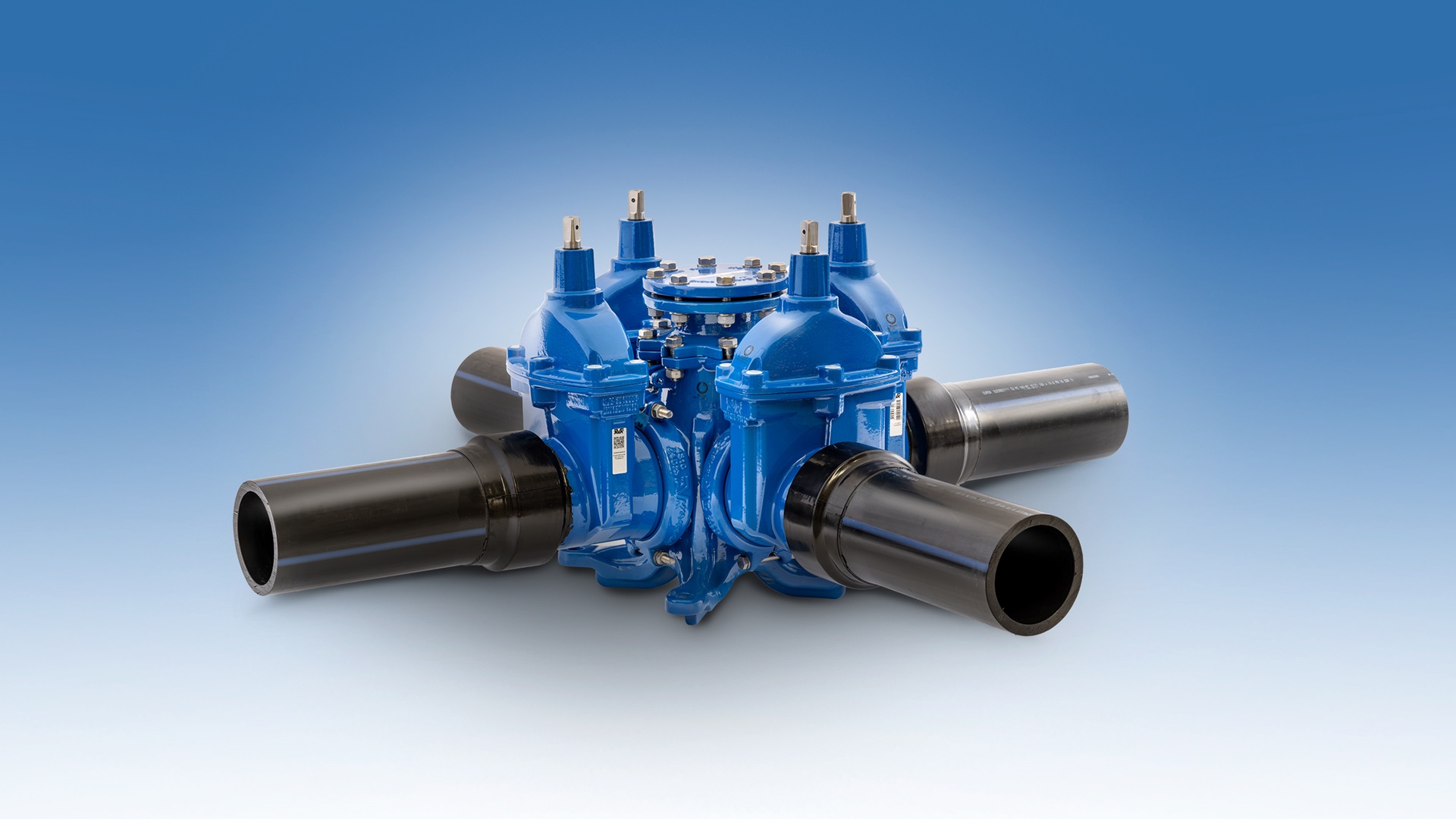

Combi-cross now also available with PE pipe ends
We are introducing a new valve outlet with PE ends for our flexible combi-cross - an evolution that enables new combi-cross configurations with PE ends on all three or four outlets, or in a mix with flanged and blind outlets. 27-11-2025
Ideal for buried applications in PE networks
A combi-cross with PE ends is ideal for buried applications in PE networks, combining the advantages of a compact multi-valve unit with the installation benefits of direct welding into a PE pipe system.
The new valve outlet is available in DN100, DN150 and DN200, corresponding to the DN of the combi-cross centre part. The valves are supplied with black/blue PE100 SDR11/PN16 pipe ends as standard, and on request with SDR17/PN10 pipe ends or with other PE materials.
Design highlights
- Integrated PE pipe ends: Compatible with PE100/PE100-RC pipes and available in OD110, 160, 180 and 225 mm. Designed for electrofusion and butt fusion, eliminating the need for flange connections.
- Valve design: Incorporates AVK’s well-proven valve design with a boltless, full bore PE end connection that is fully tensile resistant and meets all criteria specified in DVGW G5600-1.
- Valve materials: Duplex stems (W1.4362), drinking water approved EPDM rubber and a GSK approved epoxy coating.
- Vertical outlet: The DN100 outlet is fitted with a blind flange and can be used for hydrant installation or as an inspection access point.
- Configuration possibilities: On request, the flexible combi-cross in DN100-200 can be configured with a mix of outlets – valve with PE end, flanged valve, flange or blind cap – to meet specific requirements.
Please refer to datasheet for more details: Flexible combi-cross with PE ends series 18/01-010
