Optimised aeration for precise regulation and minimised energy consumption

Wastewater treatment is responsible for a large part of the world’s total energy spending, and as energy is a valuable and scarce resource, it is a focus area to optimise these treatment processes. There are many ways of doing so – from simply replacing older equipment with new and more energy efficient solutions to taking advantage of the wastewater as a valuable resource of energy.

The organic compounds removed during the biological treatment of wastewater contain significant amounts of chemical energy that can be utilised and used for optimising the treatment processes. And with the knowledge and the technology currently available, you can actually set up energy neutral – or even energy producing – plants.

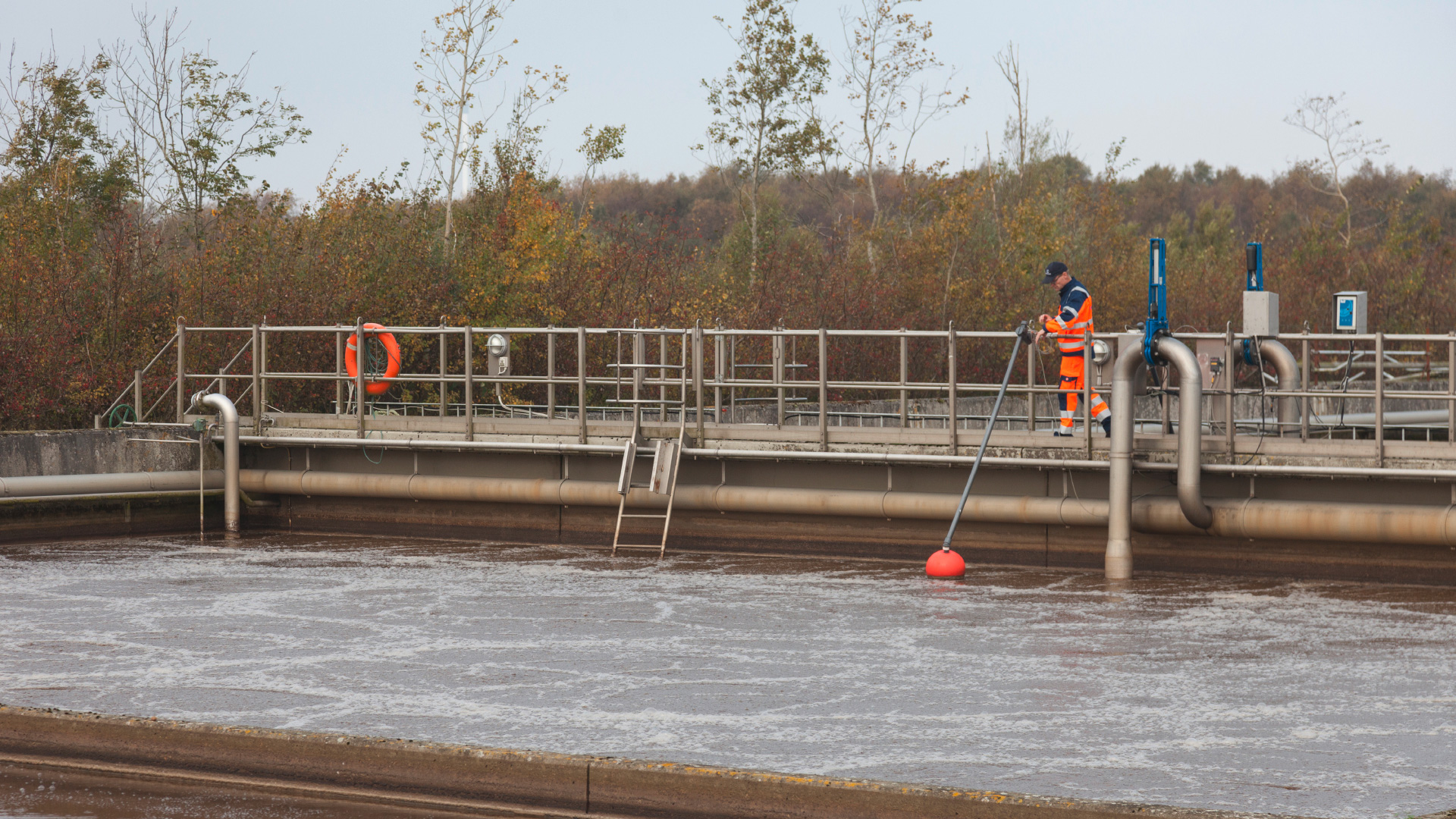

Aeration is an important part of wastewater treatment and it is the most energy consuming process in the treatment plant. Optimising this process is therefore an important step on the way to an energy producing plant.

What is aeration?

Aeration is the process of adding air to a liquid or a substance. Water aeration thus means adding oxygen to water or increasing its oxygen saturation, and there are a number of different ways to do this.

The most common methods of water aeration are the water-fall and the air diffusion methods. Water-fall aerators break up the water using spray nozzles to increase its contact with and thereby improve its ability to absorb the oxygen. Air diffusion aerators, on the other hand, are pumping air into the water. This creates tiny air bubbles travelling through the water and this way increases the water’s surface area being exposed to the air [1].

Biodegradation

The process of removing contaminants as phosphor, nitrogen and organic compounds in wastewater treatment plants usually contains the steps of mechanical, biological and chemical treatment.

Most biological wastewater treatment systems include aeration as part of the process. The biological treatment uses naturally occurring microorganisms to degrade contaminants in the wastewater, and by adding air to the water, oxygen is provided for aerobic biodegradation of organic materials. The biodegradation will be an extremely slow process in case the oxygen level is not sufficient. On the other hand, an excess level of oxygen may lead to emission of N2O – a gas way stronger and more violating for the environment than CO2. Therefore, it is important with a precise regulation of the aeration [2].

Removal of inorganic compounds

In addition, aeration in wastewater treatment is typically used to reduce the level of carbon dioxide, ammonia and hydrogen sulfide and to remove e.g. iron and manganese by oxidation. Even though sulfur compounds are not necessarily damaging, the potentially very bad smell and taste may encourage removal of these compounds from the water. Saturation of the water with nitrogen and oxygen approaching equilibrium with the surrounding atmosphere almost completely removes CO2, hydrogen sulfide and ammonia. And as an alternative to chlorine as a chemical disinfectant, aeration can efficiently remove smaller amounts of sulfur compounds, and both iron and hydrogen sulfide can effectively be oxidized to convert ferrous iron to ferric iron and to reduce hydrogen sulfide to atomic sulfur. These compounds can then physically be filtered from the water [1].

Precise regulation is important

Aeration is the most energy consuming activity on a wastewater treatment plant and this process typically counts for as much as up to 50% of the total power consumption at the plant [3].

Due to the high energy consumption, aeration is seen as one of the most critical steps of wastewater treatment and a well-designed aeration system directly impacts both the effectiveness and the economy. Controlling the aeration process does not only reduce the energy used for the wastewater treatment, it can also reduce the emission of CO2. However, as already mentioned the energy saving actions may give rise to N2O emission if the process is not controlled correctly. Thus, a precise regulation is important – not only for the economy but also for the environment.

AVK knife gate valves for aeration

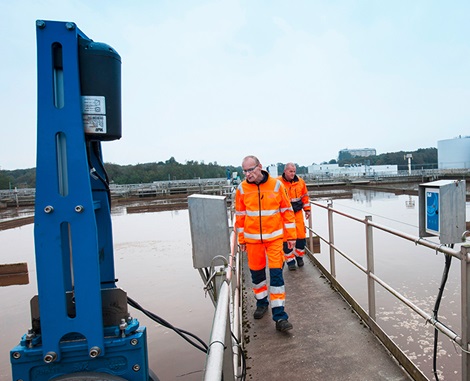

AVK offers high quality solutions to control the aeration process which can lead to great precision and minimised energy consumption. Especially our knife gate valves with linear electrical actuators have proven efficient for such optimisations.

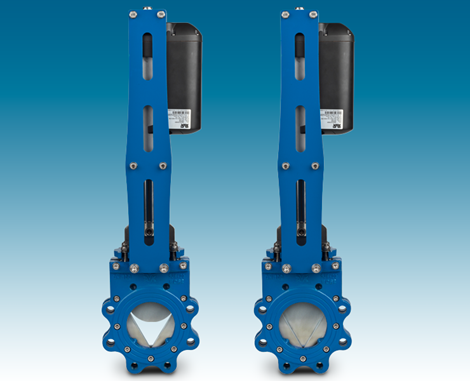

Knife gate valves provide a more precise regulation than butterfly valves traditionally used in the aeration tanks, and our knife gate valves with v-port allow for even better control due to the v-port design being able to regulate the flow with high precision. Using our knife gate valves as part of the aeration process also brings a number of other advantages. The knife gate valve has a compact design so that it does not take up too much space and it requires less maintenance than e.g. butterfly valves. The linear actuators use significantly less energy compared to traditional electrical actuators and will thus also contribute significantly to a reduction of the energy consumption at the wastewater plant.

Energy consumption for linear actuators compared to conventional actuators

DN150 AVK valve with Linak linear actuator

  • Medium: air
  • Nominal effect (measured): 72 W (3A x 24V)
  • Time to open/close: 15 sec
  • Energy consumption - Linak actuator: 72 W x (15 s / 3600 s/h) = 0.3 Wh
  • Energy consumption - conventional actuator: 370 W x (41 s / 3600 s/h) = 4.2 Wh
A Linak actuator uses 93% less energy than a conventional actuator for a DN150 valve [4]

DN250 AVK valve with Linak linear actuator

  • Medium: liquid
  • Nominal effect (measured): 120 W (5A x 24V)
  • Time to open/close: 22 sec
  • Energy consumption - Linak actuator: 120 W x (22 s / 3600 s/h) = 0.73 Wh
  • Energy consumption - conventional actuator: 750 W x (68 s / 3600 s/h) = 14.2 Wh
A Linak actuator uses 95% less energy than a conventional actuator for a DN250 valve [4]



References: [1] GE Power & Water, Water and Process Technologies, Chapter 04 - Aeration, [2] Bedreinnovation.dk, Effektiv urban vandinfrastruktur, [3] City of Aarhus, Project: Energy measures in wastewater purification plants, [4] Energy consumption has been measured by LINAK Danmark for valves and actuators installed at the Danish wastewater treatment plant FFV Spildevand A/S

Case

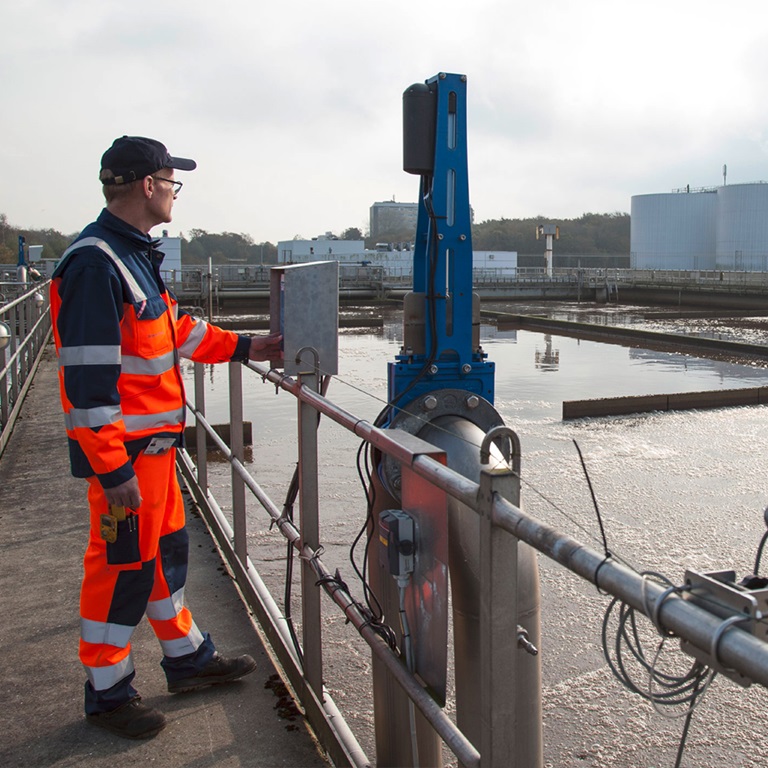

Reducing energy consumption and service costs

Replacement of worn out valves is expected to lead to significant savings on both energy consumption and service costs.
Read about the case

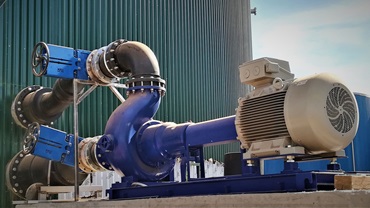

AVK products in largest biogas plant in Southern Europe
