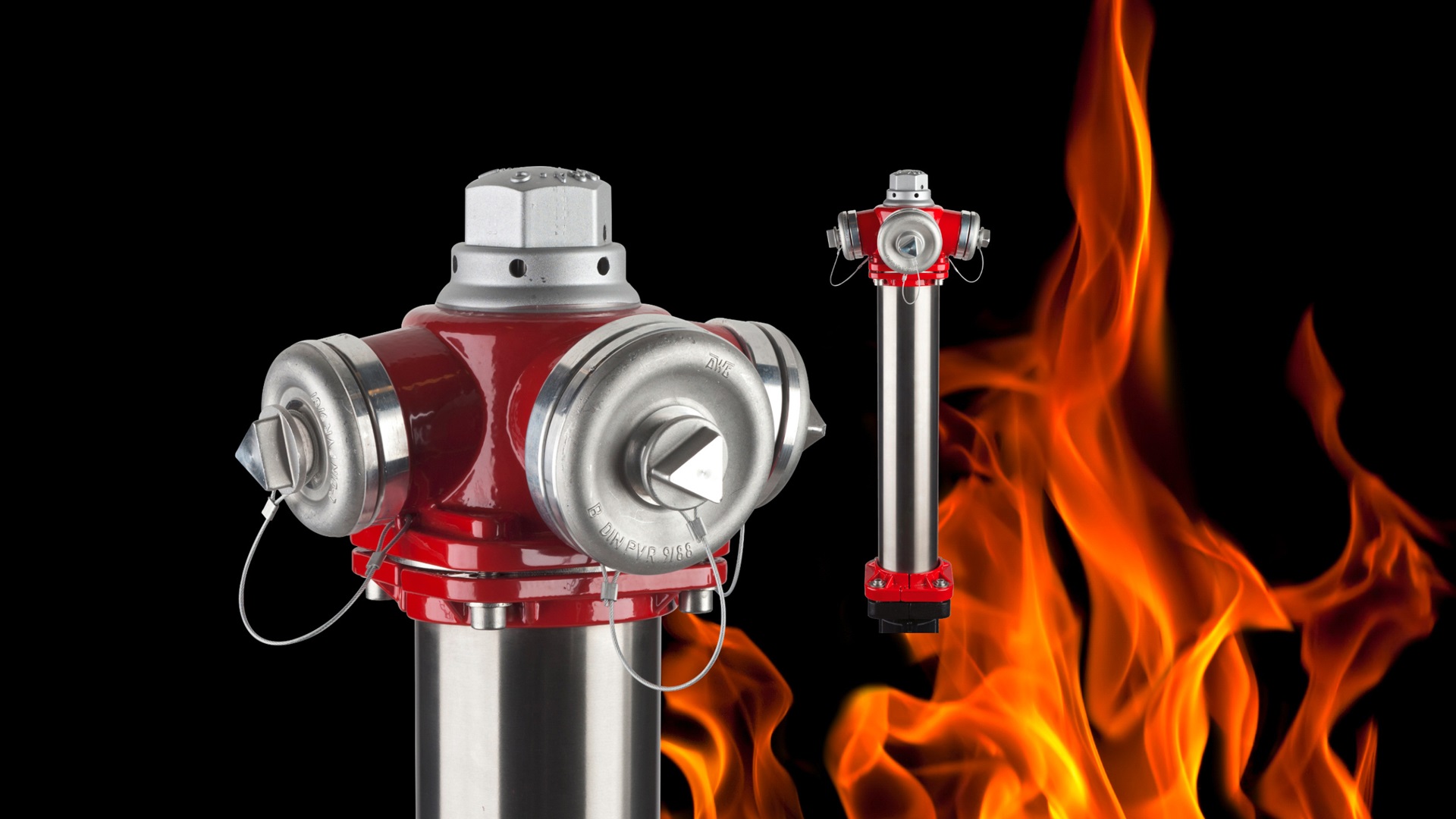

Introducing the AVK Multi hydrant

Model N7 is the latest hydrant in the 84 series of above ground hydrants. 25-06-2015

Options:

  • The head can be machined for several outlet configurations according to customer specifications.
  • Without traffic break-away design (Type A) and with traffic break-away design (Type C) according to EN 14384
  • Single shut-off and double shut-off
  • DN 80 and DN 100

Design features:

  • Meets or exceeds the requirements of DIN EN 14384 and DIN EN 1074-6, CE approved.
  • Lower barrel of epoxy coated ductile iron ensures the best available corrosion protection.
  • Upper barrel of stainless steel for a modern look.
  • Hydrant head of ductile iron with epoxy powder coating and extra UV resistant polyester coating.

The Multi hydrant is a modern, slim lined hydrant featuring our standard series 84 below ground barrel with all the components known from our existing range.

Please click below to find datasheets and make sure also to check out the animation.

84/90 without traffic break-away design (Type A), single shut-off

84/91 with traffic break-away design (Type C), single shut-off

84/92 without traffic break-away design Type A), double shut-off

84/93 with traffic break-away design (Type C), double shut-off

Animation

Multi hydrant - N7

Animation about features and options of our Multi hydrants series 84

Download brochure

Fire protection

Get a complete overview of our valves, hydrants and accessories for fire protection including full information about their features and benefits
