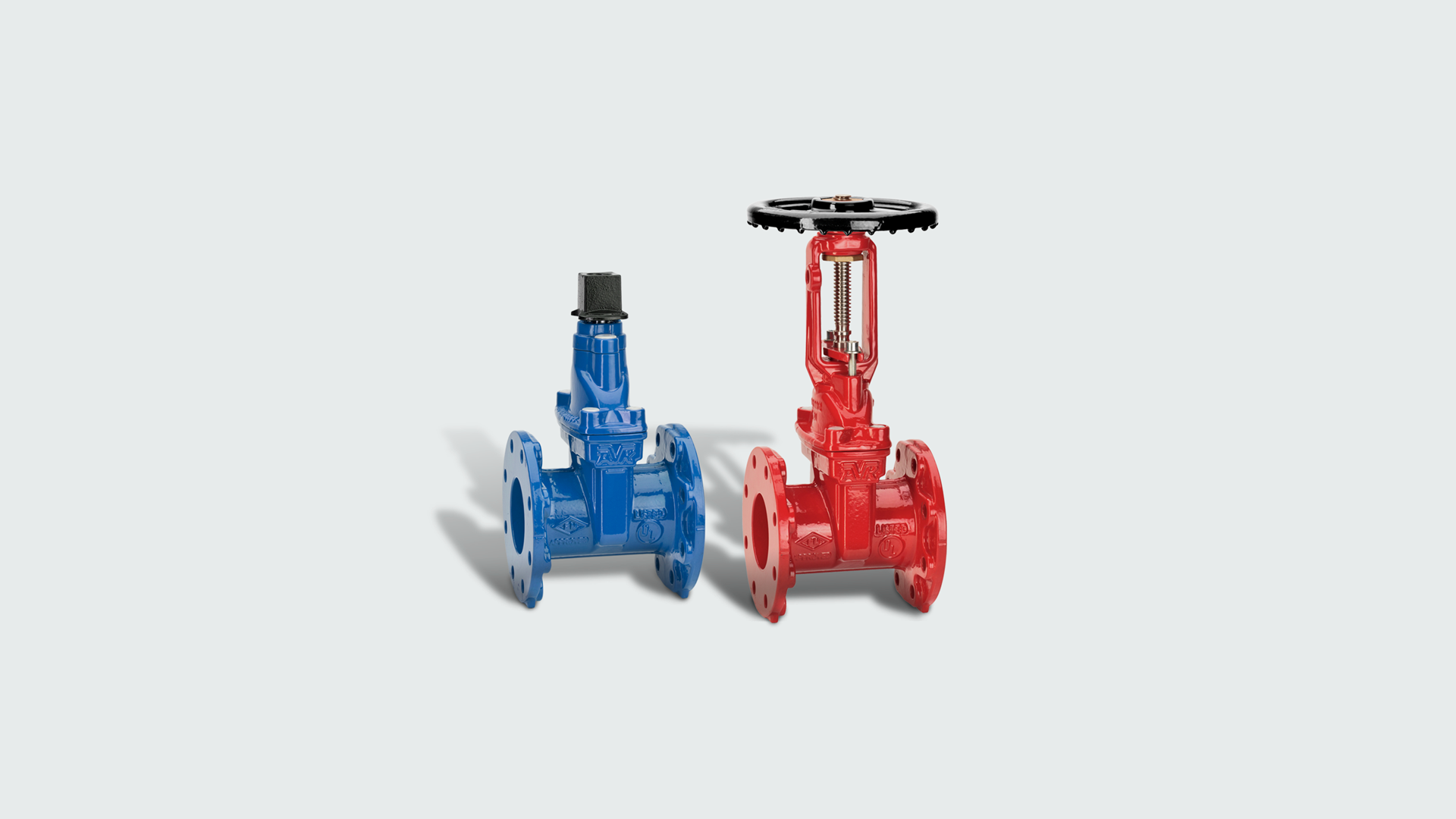

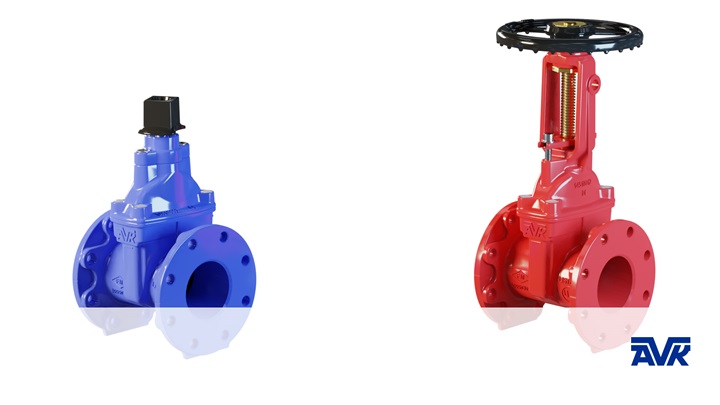

AVK dedicated UL & FM gate valves are designed specifically to fulfill the requirements in the UL 262 and FM 1120/1130 standards. They are available as OS&Y (Outside Screw and Yoke, with rising stem and handwheel) and NRS (Non-Rising Stem, with wrench nut) variants.
The NRS valves are suitable for both outdoor and indoor applications, while the OS&Y rising stem valves are typically used for above-ground indoor applications, since it is easy to recognise their wedge position, even at a distance. The yoke on the OS&Y valve is prepared for easy installation of a fixed monitoring switch.
The new, dedicated UL & FM gate valves are available in DN65-200 in the following variants. Please refer to the datasheets for more details.
- 145/40-001: NRS, ANSI Class 150 flange drilling
- 145/46-001: OS&Y, ANSI Class 150 flange drilling
- 145/50-001: NRS, EN 1092 PN 10/16 flange drilling
- 145/56-001: OS&Y, EN 1092 PN 10/16 flange drilling
