AVK FLANGED PIPE, PN10/16
300 mm
Contact
AVK International A/S
Bizonvej 1, Skovby, 8464 Galten, Denmark

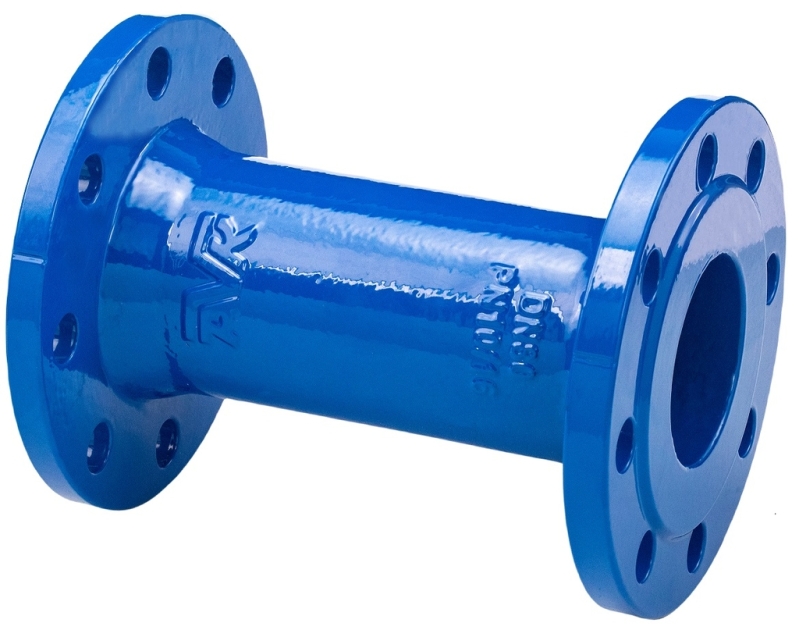

Double flange pipe type FF for water, waste water and neutral liquids to max. 70° C
AVK’s range of fittings comprises a wide selection of variants with socket and flange connection. The fittings are made of ductile iron GJS-500-7 and are fusion bonded epoxy coated in compliance with DIN 3476 part 1 and EN 14901 and GSK specifications - internally and externally.
| Variant 712/4410-001 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN50 - DN600 |
| PN: | PN10/16 |
Features
- Ductile iron fitting to EN 545.
- Body of GJS-500-7.
- Fusion bonded epoxy coating in compliance with DIN 3476 part 1 and EN 14901 and GSK guidelines internally and externally.
Downloads
Datasheet
Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
Flange drilling |
L mm |
Theoretical weight/kg |
|---|---|---|---|---|
| 712-0050-44-101 | 50 | PN10/16 | 300 | 6.8 |
| 712-0065-44-101 | 65 | PN10/16 | 300 | 8.4 |
| 712-0080-44-101 | 80 | PN10/16 | 300 | 9.7 |
| 712-0100-44-101 | 100 | PN10/16 | 300 | 12 |
| 712-0125-44-101 | 125 | PN10/16 | 300 | 14 |
| 712-0150-44-101 | 150 | PN10/16 | 300 | 17 |
| 712-0200-44-100 | 200 | PN10 | 300 | 24 |
| 712-0200-44-101 | 200 | PN16 | 300 | 24 |
| 712-0250-44-100 | 250 | PN10 | 300 | 34 |
| 712-0250-44-101 | 250 | PN16 | 300 | 33 |
| 712-0300-44-100 | 300 | PN10 | 300 | 44 |
| 712-0300-44-101 | 300 | PN16 | 300 | 43 |
| 712-0350-44-101 | 350 | PN16 | 300 | 58 |
| 712-0400-44-101 | 400 | PN16 | 300 | 72 |
| 712-0500-44-101 | 500 | PN16 | 300 | 113 |
| 712-0600-44-101 | 600 | PN16 | 300 | 165 |
2D/3D drawings
Enquiry
Scroll for more info
Components
| 1. | Fitting | Ductile iron |
Test/Approvals
- Belgaqua approved
Standards
- Designed according to EN 545
- Standard flange drilling to EN1092-2 (ISO 7005-2), PN10/16
