AVK FLANGED CROSS, PN10/16
With flanged branch
Contact
AVK International A/S
Bizonvej 1, Skovby, 8464 Galten, Denmark

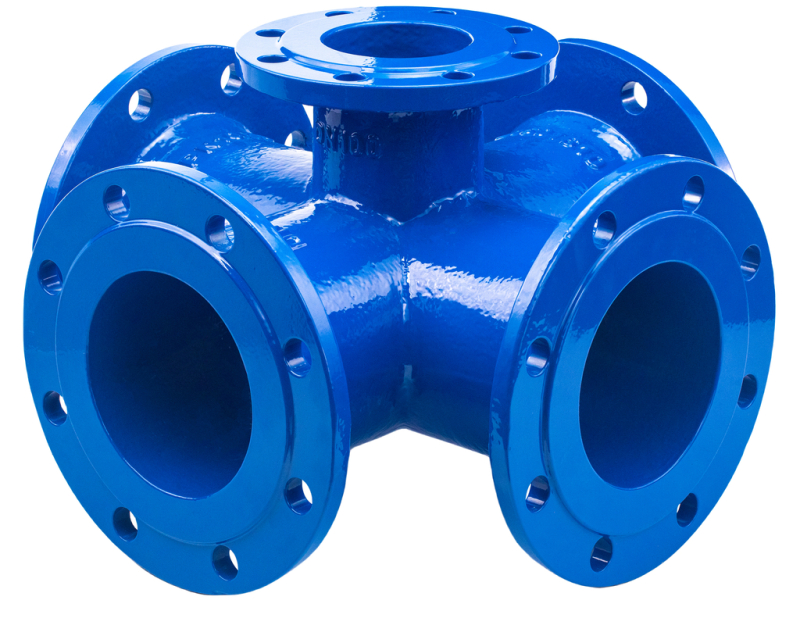

Flanged cross type TT with flanged branch to EN 545 for water, waste water and neutral liquids to max. 70° C
AVK’s range of fittings comprises a wide selection of variants with socket and flange connection. The fittings are made of ductile iron GJS-500-7 and are epoxy coated according to DIN 3476 part 1 and EN 14901 and GSK specifications - internally and externally.
| Variant 712/1610-001 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN100 - DN600 |
| PN: | PN10/16 |
Features
- Ductile iron fitting to EN 545.
- Body of GJS-500-7
- Fusion bonded epoxy coating in compliance with DIN 3476 part 1 and EN 14901 and GSK guidelines internally and externally.
Downloads
Datasheet

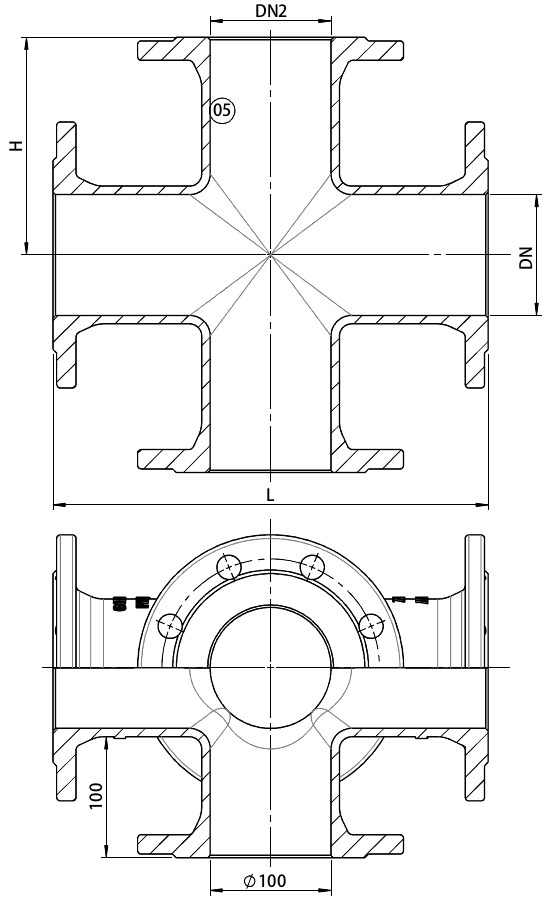

Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
DN2 mm |
Flange drilling |
L mm |
H mm |
Theoretical weight/kg |
|---|---|---|---|---|---|---|
| 712-0100-16-101 | 100 | 100 | PN10/16 | 360 | 180 | 27 |
| 712-0125-16-101 | 125 | 125 | PN10/16 | 400 | 200 | 40 |
| 712-0150-16-101 | 150 | 150 | PN10/16 | 440 | 220 | 41 |
| 712-0152-16-101 | 150 | 100 | PN10/16 | 440 | 210 | 36 |
| 712-0200-16-100 | 200 | 200 | PN10 | 520 | 260 | 59 |
| 712-0200-16-101 | 200 | 200 | PN16 | 520 | 260 | 58 |
| 712-0201-16-100 | 200 | 150 | PN10 | 520 | 250 | 52 |
| 712-0201-16-101 | 200 | 150 | PN16 | 520 | 250 | 52 |
| 712-0203-16-100 | 200 | 100 | PN10 | 520 | 240 | 46 |
| 712-0203-16-101 | 200 | 100 | PN16 | 520 | 240 | 46 |
| 712-0250-16-100 | 250 | 250 | PN10 | 700 | 350 | 93 |
| 712-0250-16-101 | 250 | 250 | PN16 | 700 | 350 | 92 |
| 712-0251-16-100 | 250 | 200 | PN10 | 700 | 325 | 98 |
| 712-0251-16-101 | 250 | 200 | PN16 | 700 | 325 | 98 |
| 712-0252-16-100 | 250 | 150 | PN10 | 485 | 280 | 88 |
| 712-0252-16-101 | 250 | 150 | PN16 | 485 | 280 | 88 |
| 712-0254-16-100 | 250 | 100 | PN10 | 700 | 275 | 80 |
| 712-0254-16-101 | 250 | 100 | PN16 | 700 | 275 | 67 |
| 712-0300-16-100 | 300 | 300 | PN10 | 800 | 400 | 155 |
| 712-0300-16-101 | 300 | 300 | PN16 | 800 | 400 | 155 |
| 712-0301-16-100 | 300 | 250 | PN10 | 620 | 330 | 137 |
| 712-0301-16-101 | 300 | 250 | PN16 | 620 | 330 | 137 |
| 712-0302-16-100 | 300 | 200 | PN10 | 800 | 350 | 124 |
| 712-0302-16-101 | 300 | 200 | PN16 | 800 | 350 | 124 |
| 712-0303-16-100 | 300 | 150 | PN10 | 505 | 310 | 114 |
| 712-0303-16-101 | 300 | 150 | PN16 | 505 | 310 | 114 |
| 712-0305-16-100 | 300 | 100 | PN10 | 800 | 300 | 107 |
| 712-0305-16-101 | 300 | 100 | PN16 | 800 | 300 | 107 |
| 712-0400-16-100 | 400 | 400 | PN10 | 900 | 450 | 262 |
| 712-0400-16-101 | 400 | 400 | PN16 | 900 | 450 | 262 |
| 712-0500-16-100 | 500 | 500 | PN10 | 1000 | 500 | 405 |
| 712-0500-16-101 | 500 | 500 | PN16 | 1000 | 500 | 405 |
| 712-0600-16-100 | 600 | 600 | PN10 | 1100 | 550 | 587 |
| 712-0600-16-101 | 600 | 600 | PN16 | 1100 | 550 | 587 |
2D/3D drawings
Enquiry
Scroll for more info
Components
| 1. | Fitting | Ductile iron |
Standards
- Designed according to EN 545
- Standard flange drilling to EN1092-2 (ISO 7005-2), PN10/16
