SPARE PARTS, SHAFT AND SEALING KIT FOR SERIES 41
Free shaft or with closed bushings, EPDM or NBR rubber, stainless steel 1.4021 or 1.1404
Contact
AVK International A/S
Bizonvej 1, Skovby, 8464 Galten, Denmark
Sealing and shaft spares for series 41 check valves, consisting of shaft, bushings, o-rings and bonnet gasket
The spare parts fit AVK series 41 check valves up through DN300.
| Variant 41/C1-001 | |
|---|---|
| DN: | DN50 - DN300 |
Features
Configurations:
41XXX4880: Free shaft / 1.4021 / EPDM rubber
41XXX48801: Free shaft / 1.4021 / NBR rubber
41XXX6780: Free shaft / 1.4404 / EPDM rubber
41XXX67801: Free shaft / 1.4404 / NBR rubber
41XXX2780: Closed bushings / 1.4021 / EPDM rubber
41XXX27801: Closed bushings / 1.4021 / NBR rubber
41XXX2480: Closed bushings / 1.4404 / EPDM rubber
41XXX24801: Closed bushings / 1.4404 / NBR rubber
Downloads
Reference nos. and dimensions:
| AVK ref. no. | DN mm |
Text |
|---|---|---|
| 41-050-24-801 | 50-80 | CB/1.4404/NBR |
| 41-080-24-80 | 50-80 | CB/1.4404/EPDM |
| 41-080-27-80 | 50-80 | CB/1.4021/EPDM |
| 41-080-27-801 | 50-80 | CB/1.4021/NBR |
| 41-080-48-80 | 50-80 | FS/1.4021/EPDM |
| 41-080-48-801 | 50-80 | FS/1.4021/NBR |
| 41-080-67-80 | 50-80 | FS/1.4404/EPDM |
| 41-080-67-801 | 50-80 | FS/1.4404/NBR |
| 41-100-24-80 | 100 | CB/1.4404/EPDM |
| 41-100-24-801 | 100 | CB/1.4404/NBR |
| 41-100-27-80 | 100 | CB/1.4021/EPDM |
| 41-100-27-801 | 100 | CB/1.4021/NBR |
| 41-100-48-80 | 100 | FS/1.4021/EPDM |
| 41-100-48-801 | 100 | FS/1.4021/NBR |
| 41-100-67-80 | 100 | FS/1.4404/EPDM |
| 41-100-67-801 | 100 | FS/1.4404/NBR |
| 41-150-24-80 | 125-150 | CB/1.4404/EPDM |
| 41-150-24-801 | 125-150 | CB/1.4404/NBR |
| 41-150-27-80 | 125-150 | CB/1.4021/EPDM |
| 41-150-27-801 | 125-150 | CB/1.4021/NBR |
| 41-150-48-80 | 125-150 | FS/1.4021/EPDM |
| 41-150-48-801 | 125-150 | FS/1.4021/NBR |
| 41-150-67-80 | 125-150 | FS/1.4404/EPDM |
| 41-150-67-801 | 125-150 | FS/1.4404/NBR |
| 41-200-24-80 | 200 | CB/1.4404/EPDM |
| 41-200-24-801 | 200 | CB/1.4404/NBR |
| 41-200-27-80 | 200 | CB/1.4021/EPDM |
| 41-200-27-801 | 200 | CB/1.4021/NBR |
| 41-200-48-80 | 200 | FS/1.4021/EPDM |
| 41-200-48-801 | 200 | FS/1.4021/NBR |
| 41-200-67-80 | 200 | FS/1.4404/EPDM |
| 41-200-67-801 | 200 | FS/1.4404/NBR |
| 41-300-24-80 | 250-300 | CB/1.4404/EPDM |
| 41-300-24-801 | 250-300 | CB/1.4404/NBR |
| 41-300-27-80 | 250-300 | CB/1.4021/EPDM |
| 41-300-27-801 | 250-300 | CB/1.4021/NBR |
| 41-300-48-80 | 250-300 | FS/1.4021/EPDM |
| 41-300-48-801 | 250-300 | FS/1.4021/NBR |
| 41-300-67-80 | 250-300 | FS/1.4404/EPDM |
| 41-300-67-801 | 250-300 | FS/1.4404/NBR |

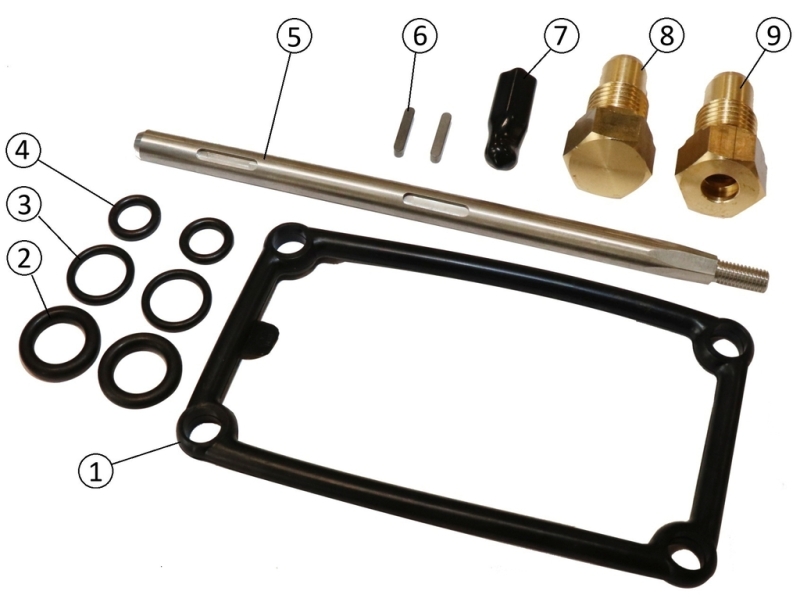

Components
| 1. | Bonnet gasket | Rubber |
| 2. | O-ring | Rubber |
| 3. | O-ring | Rubber |
| 4. | O-ring | Rubber |
| 5. | Shaft | Stainless steel |
| 6. | Key | Stainless steel A4 |
| 7. | Cap | Plastic |
| 8. | Bushing, closed | Brass, DZR CZ132 |
| 9. | Bushing, open | Brass, DZR CZ132 |
