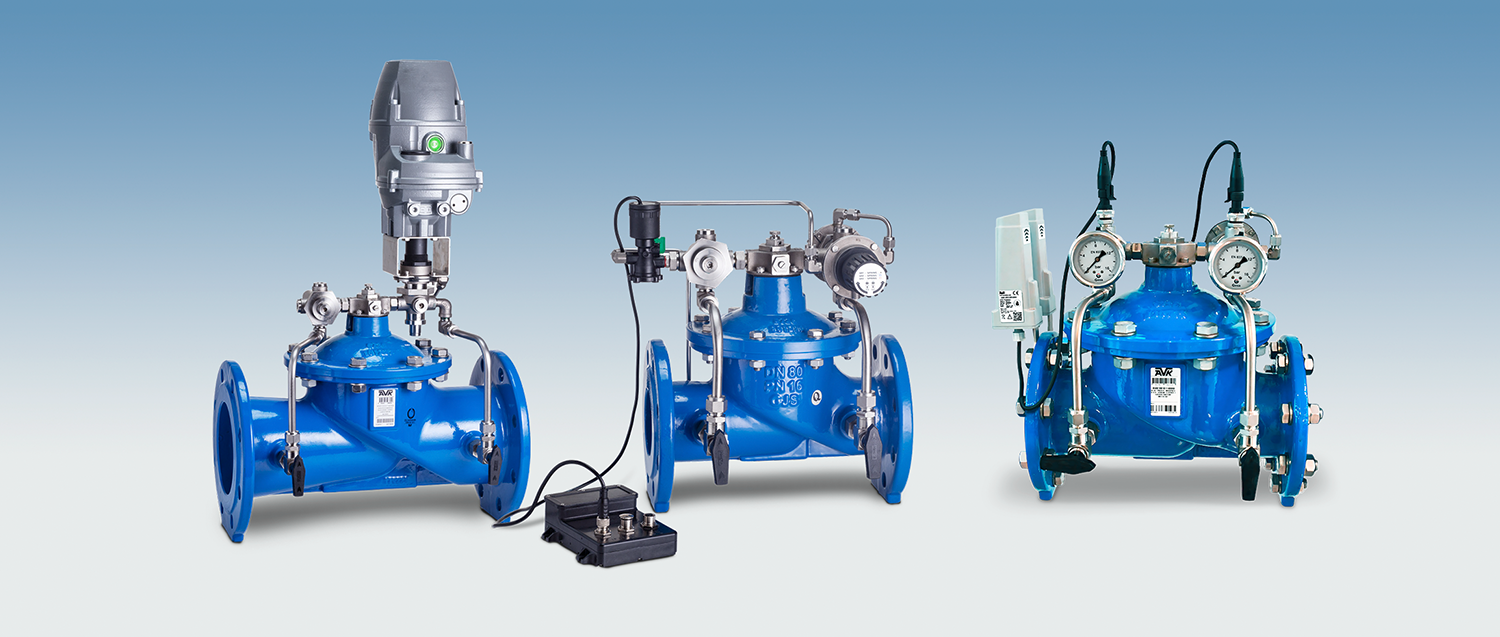

Control valve variants and configurations

Pressure reducing, pressure sustaining/relief valves and constant flow valves are part of our standard range, and with our online sizing tool you will get guidance for selection of the suitable type and dimension. On request, we also offer control valve variants such as:

Surge anticipation valve

Automatically opens to relieve overpressure. It protects the pipe system against pressure surges, mainly happening at pump start-up or in the event of failures.

Altitude valve

Automatically controls the water levels in tanks or reservoirs using the water column as reference.

One-way: The altitude pilot senses the water level and opens to refill, once the level drops below set point.

Two-way: Like one-way, but furthermore, the valve opens for returning the flow in case the inlet pressure is lower than the tank/reservoir pressure.

Float level valve

Automatically controls the water levels in tanks or reservoirs using a remote ball float as pilot.

Modulating: The modulating float is remotely installed and controls the tank/reservoir level at a defined set point. The valve closes tightly at desired level and opens, if filling is needed.

Non-modulating: The non-modulating float keeps the valve closed until the tank/reservoir level reaches the minimum acceptable set point. Then the control valve opens fully to refill, until it reaches the maximum acceptable set point, and the valve closes.

Solenoid control valve

Automatically either closes or opens the main valve.

Dual solenoid control valve

Automatically controlled by electrical signals. The control valve offers full regulation of pressure, flow and level.

Multi-function and solenoid override

Multi-function control valves, such as a combined pressure reducing and pressure sustaining control valve, are also part of the range. Furthermore, many of the variants are available with solenoid override, where an electric signal either closes or opens the main valve.

See video for how to change a standard pressure reducing valve to a pressure reducing valve with solenoid override.

See video for how to change a standard pressure sustaining valve to a pressure sustaining valve with solenoid override.

Optional configurations

AVK also offers accessories such as pressure gauges and position indicators as well as special configurations e.g. with PLC, electrical actuator, built-in anti-cavitation trim, lifting lugs and flush valve on the filter. Are you looking for further answers regarding control valves and their function? Find our FAQ and all relevant downloads here

Please contact our Product Manager about the optional variants and configurations.

AVK offers a wide range of control valves, e.g. pressure reducing and constant flow valves. Use our calculation tool to find the right solution!


How does an AVK constant flow valve work.

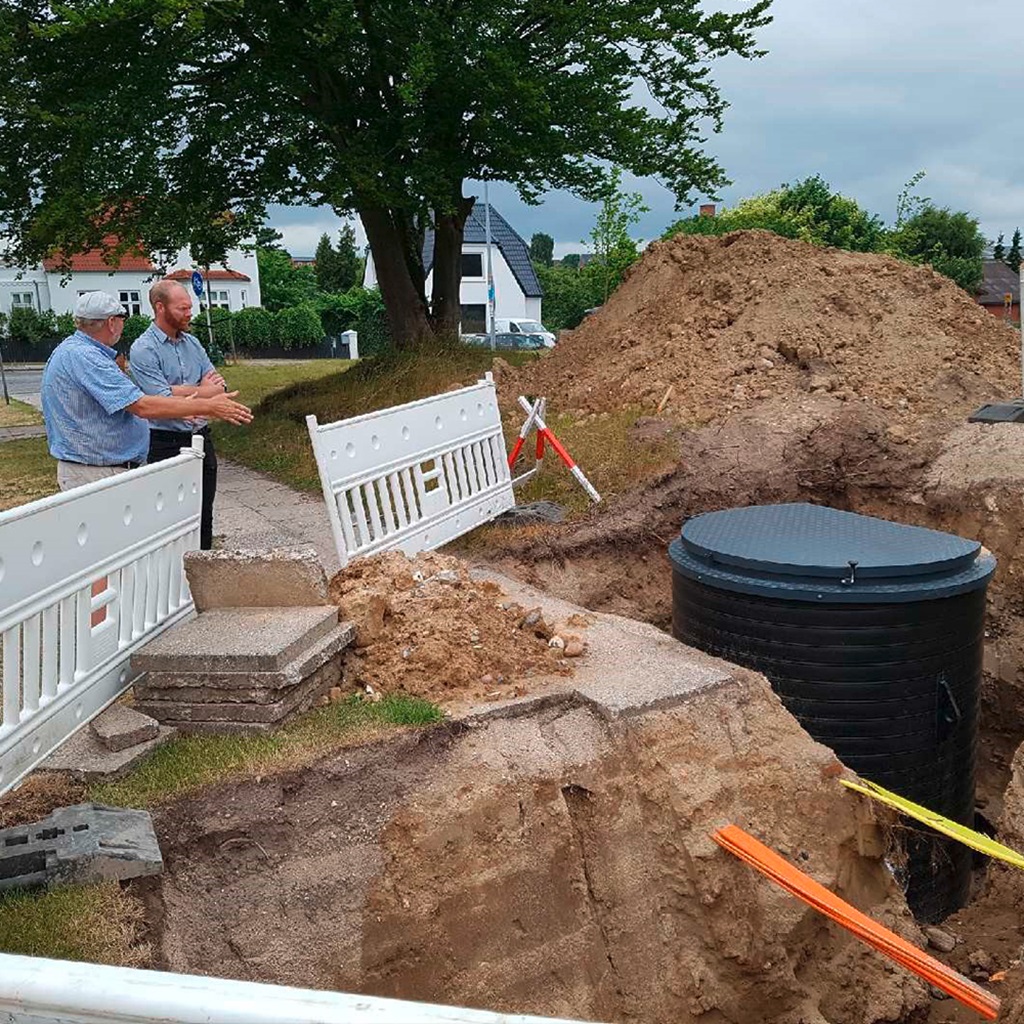

First section well installed in large pressure management project

Delivering power to wells in an underground water supply network is no easy task, which also turned out to be the reality for Strømmen Vandværk in Randers, Denmark.
See all cases

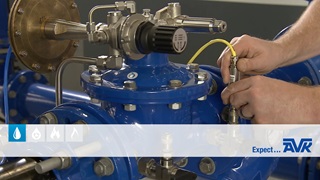

How to install a Regulo controller on an AVK pressure reducing valve.
